VIEW BY SEGMENTS

1. Title & Introduction - 00:00:00

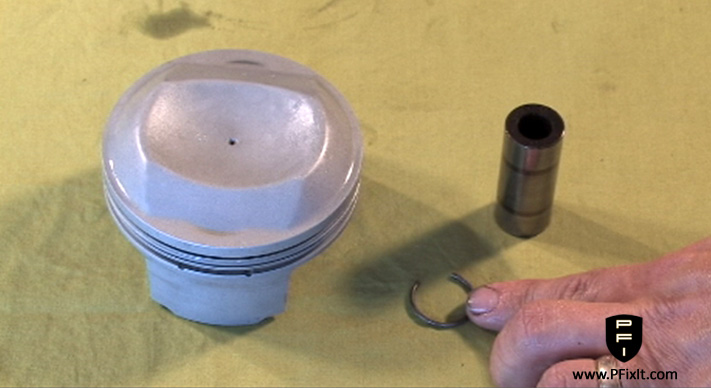

2. 1st Circlip Installation - 00:00:12
3. Piston Rings Intro & Installation - 00:02:37
4. Compressing the Rings - 00:08:12

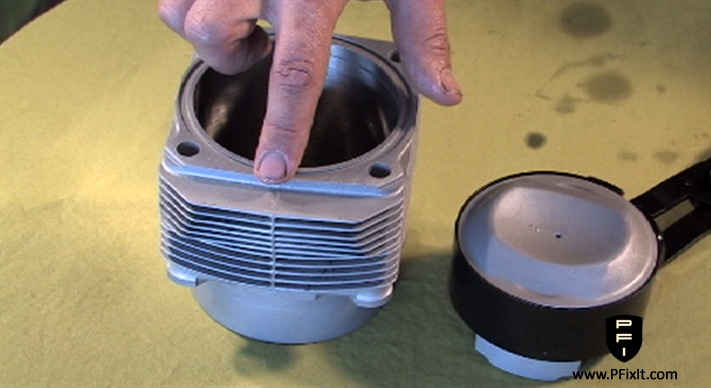

5. Install Piston into Cylinder - 00:10:03
6. Piston Pin Installation - 00:11:53
7. Viton Seal Installation - 00:12:00
8. Installation Prep - 00:12:43
9. Lube Connecting Rod - 00:14:31
10. Install 1st Cylinder - 00:14:47
11. 2nd Circlip Installation - 00:15:26
12. Attach Temporary Cylinder Holder - 00:16:32
13. Attach Remaining Cylinders - 00:16:55
14. Install Engine Case Plug - 00:17:17
15. Install Main Oil Drain Plug - 00:17:43
16. Install Air Duct - 00:18:30
17. Install Head Gaskets - 00:19:43
18. Cylinder Heads & Valves Intro - 00:20:22
19. Temperature Sensor - 00:20:29
20. Apply Anti-Seize - 00:20:59
21. Install Cylinder Heads - 00:21:38
22. Head Stud Nuts Prep - 00:22:21
23. Install Stud Nuts - 00:22:54
24. Head Stud Nuts Torque Prep - 00:23:11
25. Cam Housing Install - 00:23:27
26. Head Stud Nuts 90 Degree Torque - 00:26:35
27. Knock Sensor Installation - 00:27:00

DESCRIPTION

The engine crankcase is sealed and now it's time to begin adding the pistons, cylinders, and heads to the engine. We'll show you the steps to make it all possible!

Runtime: 00:27:25

Video Highlights:

  • Installing Piston Rings

  • Installing Pistons into Cylinders

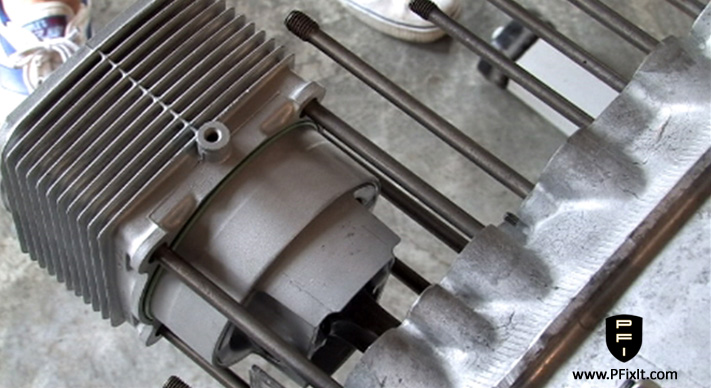

  • Attaching Cylinders to Engine

  • Installing Cylinder Heads

  • Installing Head Stud Nuts

  • Final Head Stud Nut Torque

MATERIALS

Tools

  • Piston Ring Compression Tool Set

  • Torque Guage

  • Breaker Bar

  • 12mm 12pt Star Socket

  • 13mm Socket

  • 8mm Allen Head Socket

  • Socket Extender

  • Socket Wrench

  • Rubber Hammer

  • Torque Wrench

  • Screwdriver


  • Other Items
  • Lint Free Towels

  • Anti-Seize

  • Tempporary Cylinder Holders

  • Masking Tape

  • Assembly Lube

  • Oil Ring??

  • Compression Rings (2)

  • Viton Seals (6)

  • Head Gaskets (6)
