VIEW BY SEGMENTS

1. Title & Introduction - 00:00:00

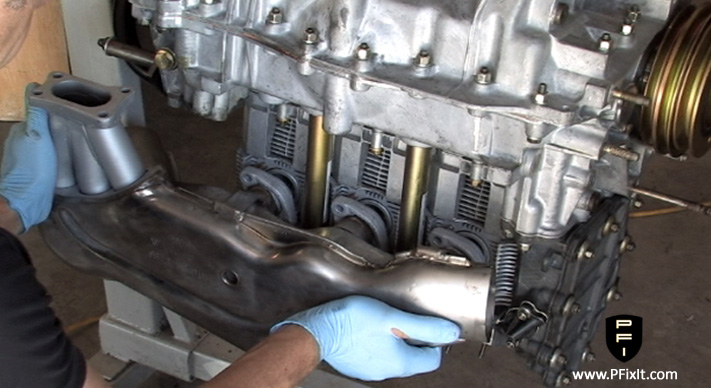

2. Heat Exchanger (Passenger Side) - 00:00:12
3. Exhaust Gasket Installation - 00:00:29
4. Heat Exchanger Installation - 00:00:46
5. Cooling Fan Straps Intro & Installation - 00:01:42
6. Engine Tin Intro & Installation - 00:02:47
7. Power Steering Pump Intro & Installation - 00:03:14
8. Cam Holding Tool - 00:08:31
9. Power Steering Pump Bolt Torque - 00:08:44
10. Power Steering Covers Installations - 00:09:10
11. Muffler Bracket Installation - 00:10:59
12. Engine Tin Installation - 00:12:24
13. Timing Chain Housing Cover Installation (Passenger Side) - 00:13:15
14. Oil Line and Flange Intro & Installation - 00:13:28
15. Large Oil Line Intro & Installation - 00:15:13
16. Heat Exchanger (Driver Side) - 00:15:51
17. Exhaust Gasket Installation - 00:16:18
18. Heat Exchanger & Gasket Installation - 00:16:29
19. Connect Heat Exchangers - 00:18:17
20. Ignition Distributor Intro & Installation - 00:19:07

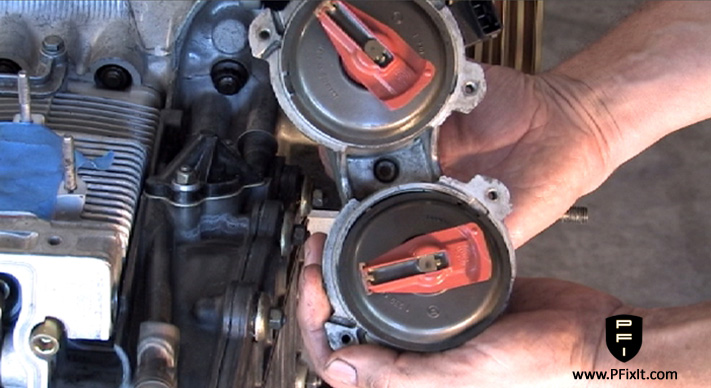

21. Distibutor Caps Intro & Installations - 00:21:24
22. Knock Sensors Intro & Installations - 00:22:45
23. Fan Shroud Intro - 00:24:09
24. Intake Assembly/Fuel Injector Intro - 00:25:34
25. Fan Shroud Installation & Prep - 00:27:46
26. Cruise Control Supports Intro & Installation - 00:29:43
27. Engine Tin Hardware Intro & Installation - 00:30:50
28. Knock Sensors Routing & Installation - 00:31:45
29. Attaching Ground Straps - 00:34:15
30. Alternator Prep & Install Connections - 00:34:43
31. Fan Assembly Installation - 00:37:23
32. Secure Cooling Fan straps - 00:37:42
33. Fan Shroud Cover Intro & Installation - 00:38:55
34. Fan Blade Installation - 00:39:45
35. Oil Breather Assembly Intro & Installation - 00:40:03
36. Oil Pressure Sending Unit Intro & Installation - 00:42:19
37. A/C Bracket Intro & Installation - 00:42:40
38. Cruise Control Module Intro & Installation - 00:43:33
39. Air Intake Hardware Intro & Installation - 00:44:09
40. Attaching Wires to Oil Sending Unit - 00:45:38
41. Fastening Engine Shroud - 00:46:28
42. Bracket Prep & Installation- 00:47:48
43. Air Intake Unit Intro & Installation - 00:50:42
44. Spark Plug Engine Tins Intro & Installation (Passenger Side) - 00:51:07
45. Route Spark Plug Wires - 00:52:36
46. Spark Plug Engine Tin Installation (Driver Side) - 00:52:48
47. Flywheel Assembly Intro & Installation - 00:54:05
48. Belt Tension Sensor Intro & Installation - 00:57:05
49. A/C Bracket Intro & Installations - 00:58:09
50. Crankshaft Pulley Installation - 00:59:33
51. Engine Mount Bracket Intro & Installation - 00:59:53
52. Inner & Outer Belt Pulley Assembly Review - 01:01:02
53. Inner Pulley & Belt Installation - 01:02:52
54. Outer Pulley & Belt Installation - 01:06:29

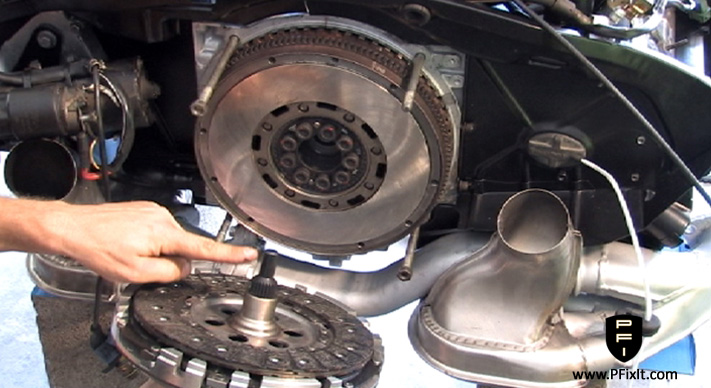

55. Clutch Assembly - 01:09:01
56. Clutch Installation - 01:09:34
57. Secure Engine Tin - 01:10:39
58. Flywheel Sensor Intro & Installation - 01:11:09
59. Various Wire Routing - 01:11:57
60. Catalytic Converter & O2 Sensor Prep - 01:12:53
61. Muffler Assembly Prep - 01:13:30
62. Rear Engine Tin Intro & Installation - 01:14:19

DESCRIPTION

This chapter is the motherload! Here you will work your way through many of the exterior engine components as well as the flywheel and clutch. The end of the tunnel is near and you begin to see the light!

Runtime: 01:16:02

Video Highlights:

  • Attaching Heat Exchangers

  • Installing Power Steering Pump

  • Installing Oil Lines

  • Installing Outer Engine Shroud

  • Installing Various Engine Tin

  • Installing Alternator

  • Installing Flywheel

  • Installing Clutch

  • Routing Wires

  • Catalytic Converter

  • Muffler

MATERIALS

Tools

  • 8mm Long Allen Head Socket

  • 5mm Allen Head Socket

  • 10mm Socket

  • Socket Wrench

  • 13mm Socket

  • 18mm Socket

  • 14mm Socket

  • 16mm Socket

  • P237 Cam Holding Tool

  • 36mm Wrench

  • 7mm Wrench

  • M10 Star Bit

  • M12 Star Bit

  • Phillips Head Screwdriver

  • Small Hammer

  • Torque Wrench

  • Crescent Wrench

  • Clutch Disk Alignment Tool

  • Depth Guage

  • Fywheel Lock

  • Socket Wrench


  • Other Items
  • Exhaust Gaskets (6)

  • Exhaust Joining Gasket

  • Power Steering O-Ring

  • Power Steering Seal

  • Power Steering Belt

  • Oil Flange Washer

  • Intake Assembly O-Rings (6)

  • Oil Breather Assembly Gasket

  • Oil Pressure Sending Unit O-Ring

  • Flywheel Bolts (9)

  • Pilot Bearing

  • Alternator Belts (2)

  • A/C Belt

  • Anti-Seize

  • Loctite 574

  • Molykote 111

  • Motor Oil (20W 50)
